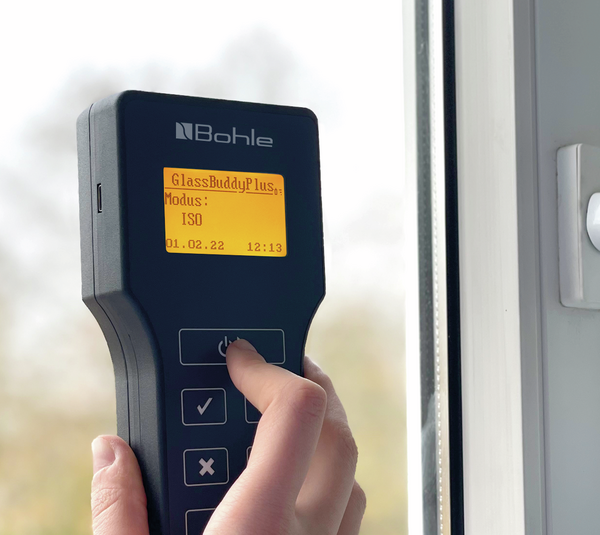

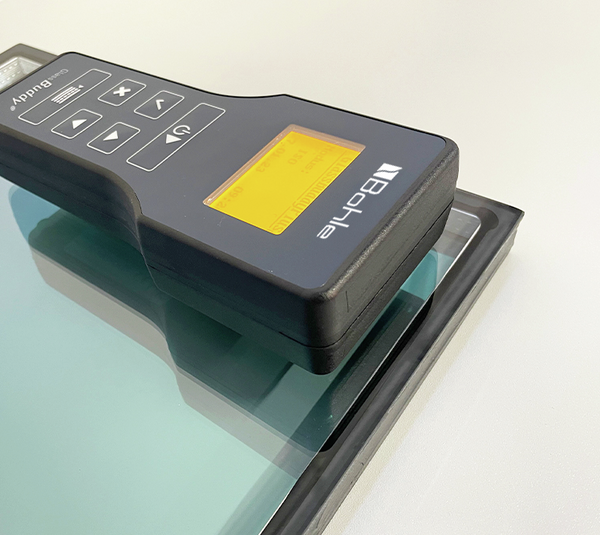

The GlassBuddy® Plus analyses flat glass precisely and non-destructively. Within seconds, the measuring device provides information on glass thickness, pane structure, coatings and their position. Some fire protection gels can also be detected.

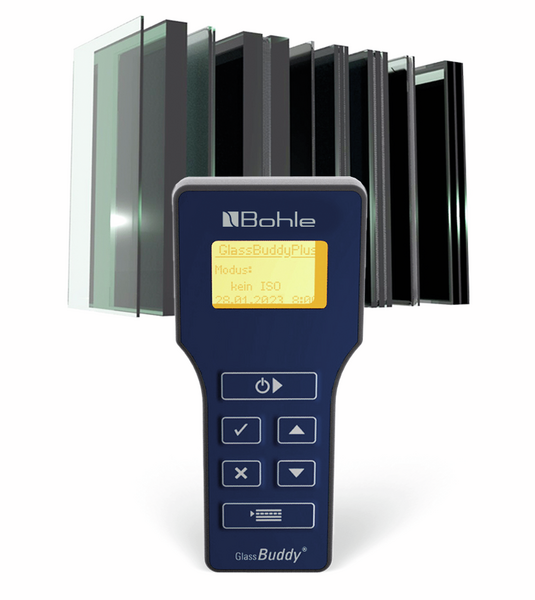

The analysis of single glass, laminated glass, and double and triple insulating glass is possible without any problems. Depending on the space between the panes, GlassBuddy® Plus can analyse a structure of max. 100 mm. Not measurable or only measurable to a limited extent are satinised/blasted glass, ornamental glass, laminated glass with matt or heavily coloured film, interference-coated glass and highly reflective glass. Fire protection gels from 1.4 mm - 3.2 mm are displayed as "Gel", whereas from 3.9 mm - 7.0 mm they are displayed as "Layer".
Show allShow less
Technical questions, comments or advice should be sent by E-Mail to glassbuddy@bohle.de.
Application note:
Observe the operating instructions. The device does not need to be calibrated regularly as long as no irregularities occur repeatedly during measurements.
Your Advantages
Measuring single glass from 2.6 mm to 19 mm
Detection of PVB films (up to 8 per composite), their thickness and position
Detection of up to 3 coatings and their position
Processing of multiple comparison measurements
Graphical representation of the measurement results

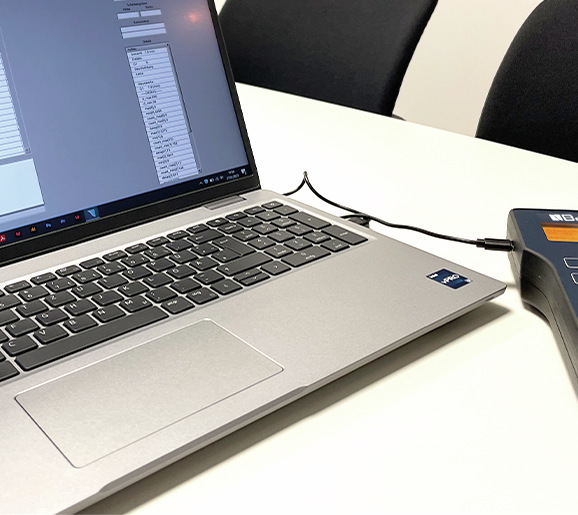

Convenient management of the measurement data on the PC (D/ EN)
Display accuracy: 0.1 mm
Save up to 250 measurement results
Battery life up to ten hours in continuous operation
Multilingual menu navigation
Graphic languages possible
Show allShow less
Technical details
Accuracy of measurement
0.1 mm
Colour
Blue
Laser class
Laser class 2M
Measuring task
Coating, Pane structure, Thickness
Operating temperature (°C)
5 - 40 °C
Package contents
1 Piece
Power supply
Battery operation
Storage temperature (°C)
5 - 40 °C
Scope of supply
1 Piece
GlassBuddy® Plus measuring device
1 Piece
USB cable
1 Piece
Transport case
Downloads
zip
zip
Software
GlassBuddy® Basic-Plus - PC-Software 4.1.7 EN - Please save the file for extraction directly to your PC and follow the instructions in the user manual.
zip
zip
Software
GlassBuddy® Basic - PC-Software V4 4.0.1 - Please save the file for extraction directly to your PC and follow the instructions in the user manual.
cyp
cyp
Software
GlassBuddy® plus (Serie 05xxx) Firmware 5.1.2plus - Bitte speichern Sie die Datei direkt auf Ihrem PC und folgen den Anweisungen der Bedienungsanleitung. - Please save the file directly to your PC and follow the instructions in the user manual.
cyp
cyp
Software
GlassBuddy® plus (Serie 04xxx) Firmware 4.1.4plus - Bitte speichern Sie die Datei direkt auf Ihrem PC und folgen den Anweisungen der Bedienungsanleitung. - Please save the file directly to your PC and follow the instructions in the user manual.
cyp
cyp
Software
GlassBuddy® basic Firmware 4.1.4basic - Bitte speichern Sie die Datei direkt auf Ihrem PC und folgen den Anweisungen der Bedienungsanleitung. - Please save the file directly to your PC and follow the instructions in the user manual.
