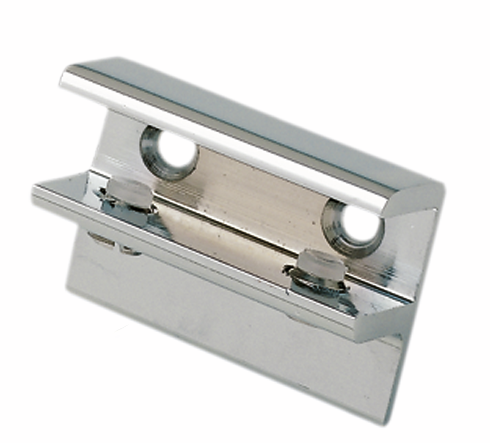

Glass shelf support angular, brass, extended support

Glass shelf support angular, brass, extended support

Product number: BO5206914

Description

Glass shelf support made of brass profile in different sizes. The extension of the wall support downwards significantly increases stability. Individually adjustable clamping reliably prevents the glass shelves from slipping out. A plastic spacer is included in the delivery.



Application note:
Load capacity and maximum glass width refer to one pair

Your Advantages

  • No glass processing required
  • Higher stability due to extension of the wall support
  • Plastic glass protection is included in the scope of delivery
  • Available in different sizes

Technical details

Degree of gloss
Shiny
Depth
19 mm
Fastening type
Clamped
Glass processing required
No
Glass thickness
8 - 10 mm
Height
32 mm
Load capacity
5 kg
Material
Brass
Max. overhang
150 mm
Mounting type
Glass-Wall
Package contents
1 Piece
Shape
Square
Surface
Chrome-plated
Width
45 mm
Width max.
600 mm
