The Square 12 reinforcement bar set is used to connect a fixed glass side panel to a wall. The glass connector is clamped onto the upper glass edge and, like the wall connector, is freely adjustable in angle.
Reinforcement bar set Square 12, glass-wall
Please to see prices.
Description
Your Advantages
- No glass processing required
- Small inconspicuous design
- Reinforcement bar can be cut to desired length
- Wall connector angle adjustable
- Glass connector angle adjustable
Technical details
Adjustable
Yes
Colour
Stainless steel colour
Degree of gloss
Matt
Glass thickness TSG
8 - 10 mm
Height
12 mm
Length
1,210 mm
Material
Brass, Stainless steel V2A (AISI 304)
Mounting type
Glass-Wall
Package contents
1 Set
Product series
Square 12
Shape
Square
Surface
Nickel-plated
Surface treatment
Brushed
Width
12 mm
Scope of supply
1 Piece
Reinforcement bar
1 Piece
Adjustable glass connector
1 Piece
Adjustable wall connector
Discover more
Skip product gallery
New
+
2
Variations

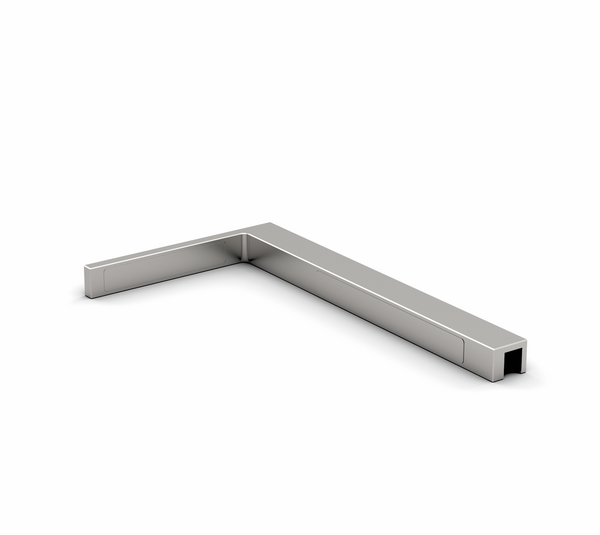

Stabilising bracket, glass-wall 90°, DIN right
Subscription
Art. no.:
BO5420324
- Colour scheme: Stainless steel colour brushed matt
- Material: Brass
- Opening direction: Right
New
+
2
Variations

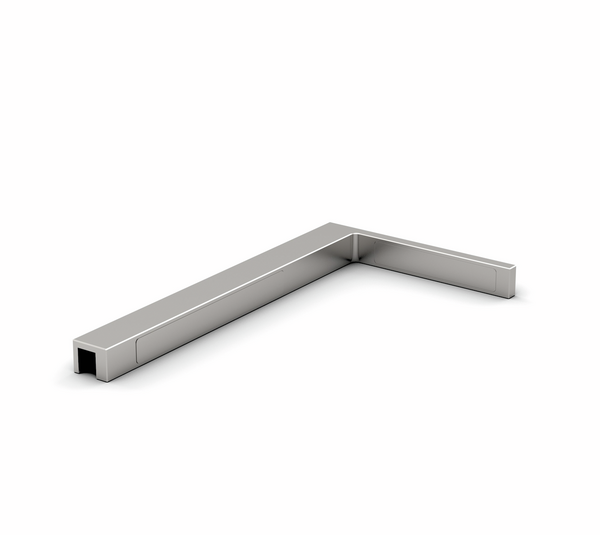

Stabilising bracket, glass-wall 90°, DIN left
Subscription
Art. no.:
BO5420327
- Colour scheme: Stainless steel colour nickel-plated brushed matt
- Material: Brass
- Opening direction: Left
New
+
2
Variations

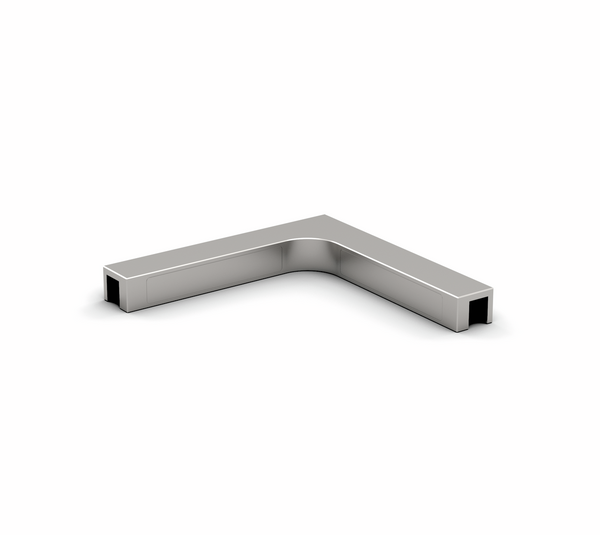

Stabilising bracket, glass-glass 90°
