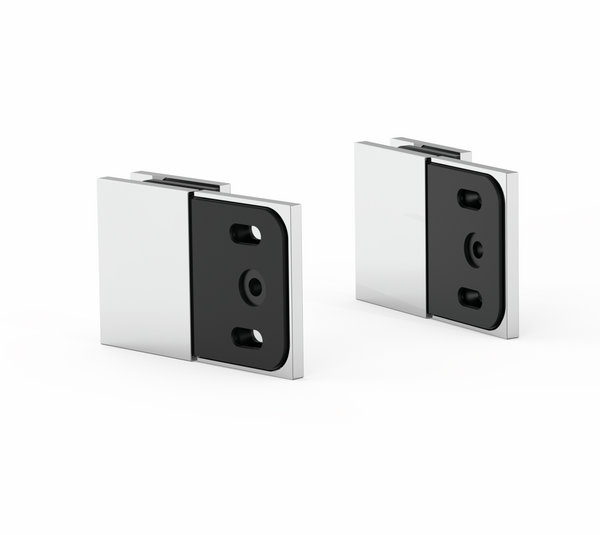

Juna® side connector, 180°

Choose Colour scheme

Choose Mounting type

Choose Model

Product number: BO5410364

Description

Juna® 180° connectors are used either for glass-glass or glass-wall applications to connect a wall with a glass side panel or two fixed glass side panels. They are mainly used for large glass fronts. They are available in aligned and non-aligned versions.

About the product series Juna®:
Developed and designed by Bohle, the Juna® shower door hinge combines aesthetics and functionality with quality and "Made in Germany" manufacturing. We therefore offer a voluntary five years manufacturer's warranty on the Juna® shower door hinge series. Minimal gap dimensions and no visible screws emphasise the high quality of the swing door fitting. Juna also makes installation easier in a number of ways: the zero position adjusting screw is easy to reach and can therefore be conveniently set. Thanks to the innovative clamping technology, the hinge pin is not damaged by the locking screw - for millimetre-precise adjustment of the zero position. The clamping screws and the zero-position fixing screw have uniform screw heads, which can be tightened quickly with just one tool. The centred mounting plate ensures optimal positioning of the cover cap. A stable plug-in connection guarantees its firm and precise fit. The high-quality brass and stainless steel components inside the hinge guarantee a long service life of the product. They also allow the hinges to bear up to 50 kg, which is confirmed by extensive tests with 100,000 test cycles as per DIN 14428:2015-09, section 5.5. Juna® shower door hinges generally also enable profile-free installation. However, the use of sealing profiles minimises water leakage. These must be interrupted in the hinge area. The series consists of 3 finishes and thus enables the realisation of a wide variety of installation options.

Show all Show less

Your Advantages

Concealed screws
Various finishes available
Only glass drill holes required
Can be used as a glass-wall connector where space is an issue

Technical details

Degree of gloss

Shiny

Glass thickness TSG

6 - 10 mm

Material

Brass

Model

Non aligning

Mounting type

Glass-Wall

Package contents

1 Pair

Product series

Juna®

Surface

Chrome-plated

Surface treatment

Polished

Downloads

PDF

Instructions

BO541036x-Juna-connector-180-glass-wall-instruction-manual.PDF

Drawings

jpg


jpg


jpg


jpg


jpg


jpg


For more drawings please log in:
