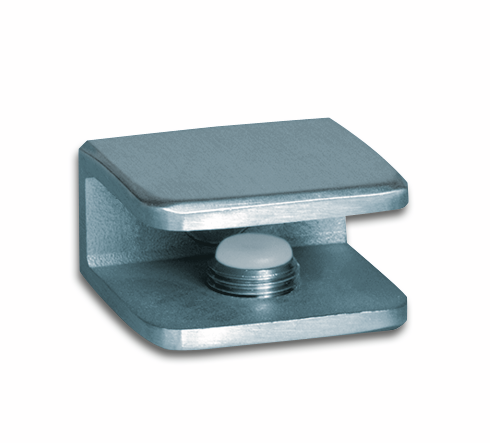

Glass shelf support angular

Glass shelf support angular

Product number: BO5106911

Description

Glass shelf supports made of various materials such as stainless steel and die-cast zinc, in different shapes, surfaces and sizes. The individually adjustable clamp securely prevents the glass shelves from slipping out. A plastic spacer is included in the delivery.



Application note:
Load capacity and maximum glass width refer to one pair

Your Advantages

  • No glass processing required
  • Different sizes available
  • Plastic glass protection is included in the scope of delivery
  • Available in various surface finishes

Technical details

Colour
Stainless steel colour
Degree of gloss
Matt
Depth
27 mm
Fastening type
Clamped
Glass processing required
No
Glass thickness
6 - 10 mm
Height
16.5 mm
Load capacity
5 kg
Material
Zinc die casting
Max. overhang
160 mm
Mounting type
Glass-Wall
Package contents
1 Piece
Shape
Square
Surface
Nickel-plated
Surface treatment
Brushed
Width
30 mm
Width max.
600 mm
