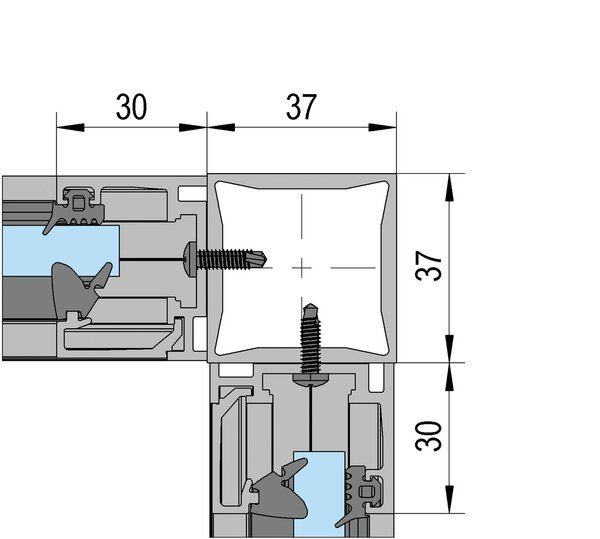

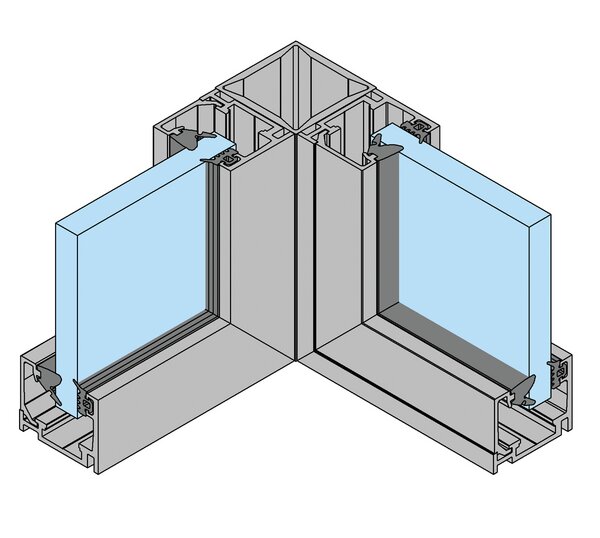

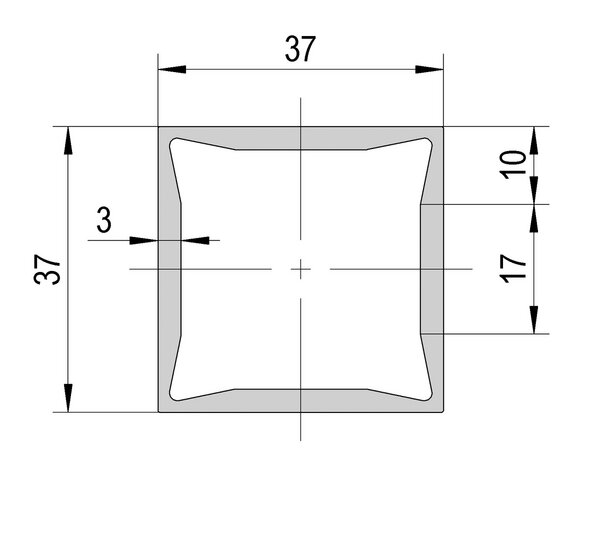

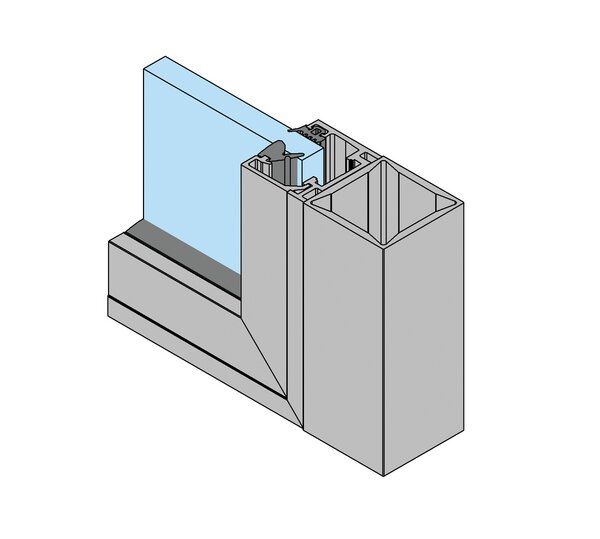

The innovative multifunctional profile allows FrameTec Select 2.0 systems to be installed at 90 degrees in all directions – both to the left and to the right.

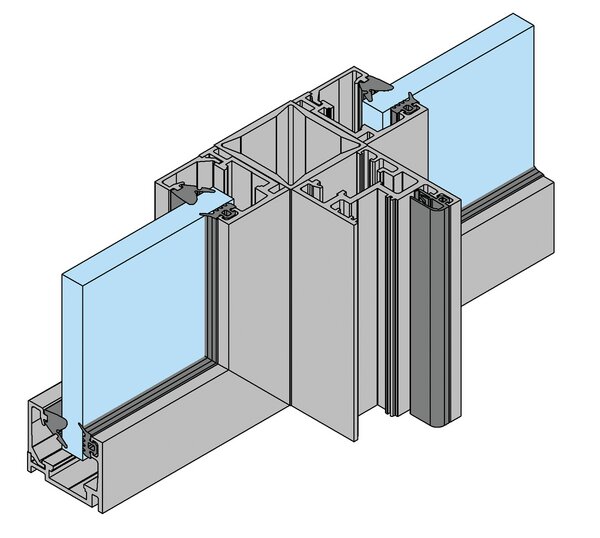

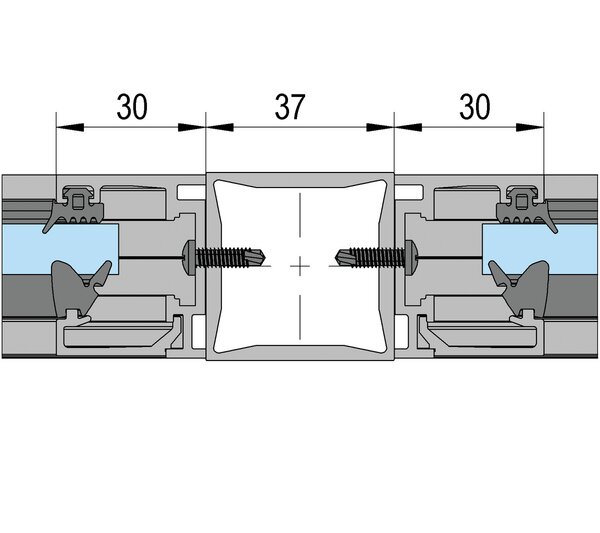

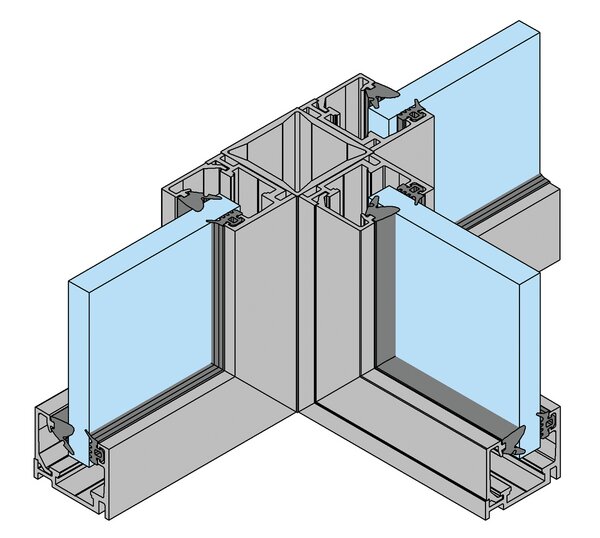

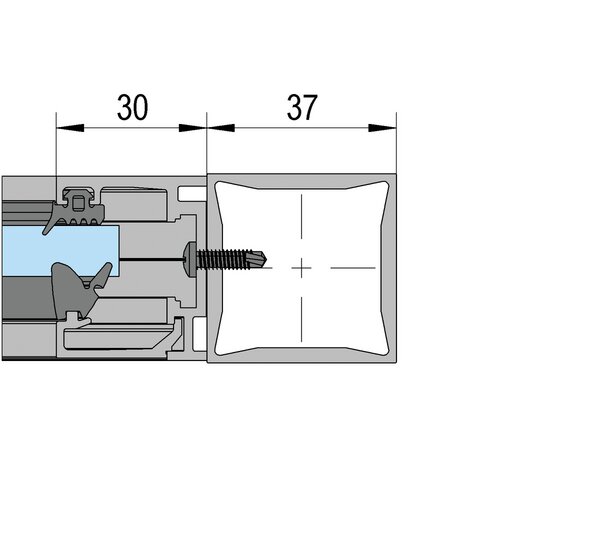

In addition, systems can be guided in all four directions at the same time or stopped precisely in the middle of the room and finished cleanly. Installation is straightforward using self-tapping screws. The system can be flexibly connected to both glazing profiles and frame profiles. This facilitates integration into a wide variety of structural conditions. A particular advantage is that all four sides of the multifunctional profile can be used equally as either the installation side or the visible side. This ensures a clean, high-quality finish every time, regardless of the installation situation.
About the product series FrameTec Select 2.0:

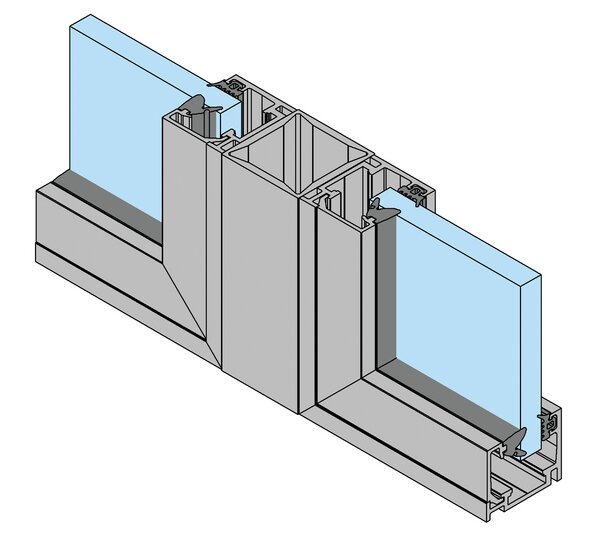

The diverse installation variations of the FrameTec Select glass partition wall system are impressive: single or double-leaf doors, combined with over panels and side panels are just as possible as partitions with T-joints or across corners. The official sound insulation test of the ift Rosenheim test institute certifies that the system has a sound insulation of up to 37 dB.
A consistent, uniform look is created by the equally narrow and deep frame and glazing profiles. Choose the right colour for any room style with the stainless steel, aluminium and matt black finishes and see for yourself the elegant, high-quality profiles. For the modern industrial look, which thrives above all on black metallic elements, we recommend decorative bars. They are glued between the existing profiles on the glass panes, enable the visual subdivision of large glass surfaces, and set strong accents.
Application note:

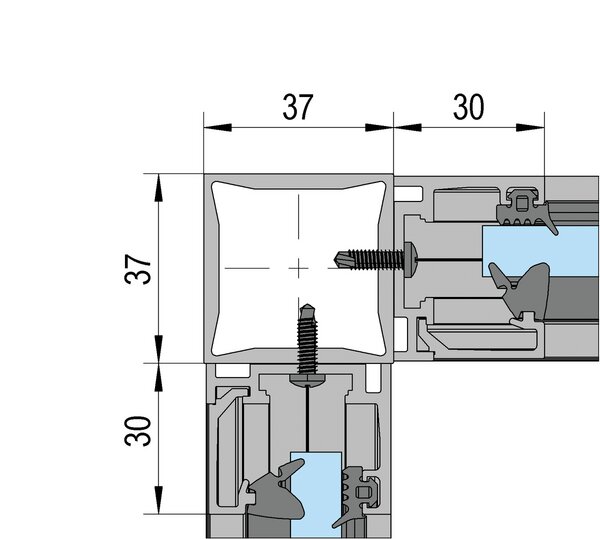

Recommended fastening:
Self-tapping pan head screws.
Preparation of profiles:
Pre-drill glazing and frame profiles every 300 mm.
Drill diameter: 6 mm.
If necessary, deburr the back of the drill holes for a gap-free connection.
Advantage of pre-drilling:
Enables fine adjustment of the elements after installation.
Recommended screws (example):
Frame profiles: 4.8 × 32 mm pan head screws, DIN 7981.
Glazing profiles: 4.8 × 16 mm pan head screws, DIN 7504.
