FrameTec Select 2.0 complete frame set

Choose Max. door width

Choose Max. door height

Choose Colour scheme

Product number: BO5220808

Description

Design open and light-flooded rooms with the quick and easy-to-install frame construction. The acoustic separation of the individual rooms by up to 37 dB enables undisturbed privacy and discretion in numerous applications.

The frame profiles can be used for both glass-wall and glass-glass solutions. As no milling work is required for door hinges and strike plates, the door leaf can be mounted DIN right and DIN left. You simply slide the hinge holders into the multi-function channel and then fasten the hinges with screws. The sturdy corner connectors ensure that the mitres are held together securely.

About the product series FrameTec Select 2.0:
The diverse installation variations of the FrameTec Select glass partition wall system are impressive: single or double-leaf doors, combined with over panels and side panels are just as possible as partitions with T-joints or across corners. The official sound insulation test of the ift Rosenheim test institute certifies that the system has a sound insulation of up to 37 dB. A consistent, uniform look is created by the equally narrow and deep frame and glazing profiles. Choose the right colour for any room style with the stainless steel, aluminium and matt black finishes and see for yourself the elegant, high-quality profiles. For the modern industrial look, which thrives above all on black metallic elements, we recommend decorative bars. They are glued between the existing profiles on the glass panes, enable the visual subdivision of large glass surfaces, and set strong accents.

Show all Show less

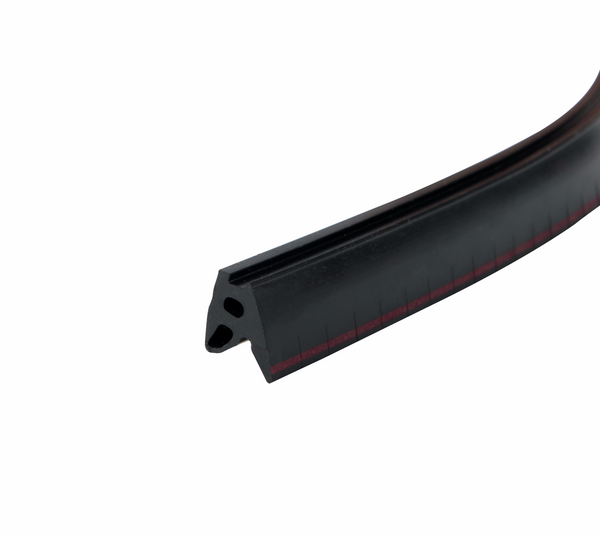

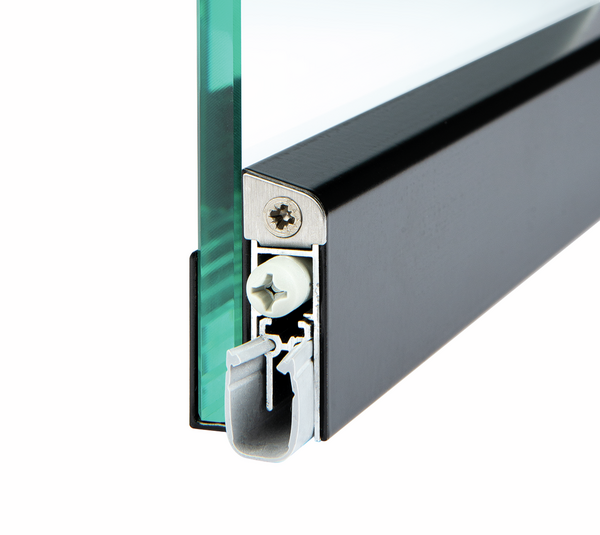

Please order base seal, wedge seal and strike plate separately.

Application note:
When using 10 - 10.76 mm glass door thickness, a lock with a shortened latch and deadbolt head is required. For door heights >2200 mm, we recommend the use of 3 door hinges. The cover profile must be shortened on site. When using standard U-profiles, the frame must be fixed at the bottom with floor fixing bracket BO 5220818 to ensure stability.

Your Advantages

Frame profiles with pre-cut mitres
Easily trimmed to size
No milling required for door hinges and strike plates
Can be used DIN right and DIN left
Suitable for glass-wall and glass-glass connection

Uniform appearance due to the same shallow depth of all profiles
Dry glazing with high quality plug-in seals

Show all Show less

Technical details

Color gasket

Black

Colour

Black

Colour standard

RAL 9005

Degree of gloss

Satin finish

Frame outer size Height

2,750 mm

Frame outer size Width

1,069 mm

Glass thickness ESG Fixed glazing

8 - 12 mm

Glass thickness LSG door wing

8.76 - 10.76 mm

Glass thickness TSG door wing

8 - 10 mm

Glass thickness VSG Fixed glazing

8.76 - 13.52 mm

Material

Aluminium

Max. door height

2,709 mm

Max. door width

1,000 mm

Product series

FrameTec Select 2.0

Surface

Powder coated

Show all Show less

Scope of supply

3 Pieces

Frame profile with pre-cut mitres

3 Pieces

Cover profile

2 Pieces

Corner connector

3 Pieces

Stop seal

3 Pieces

Hinge mounting plates for aluminium frame hinge
