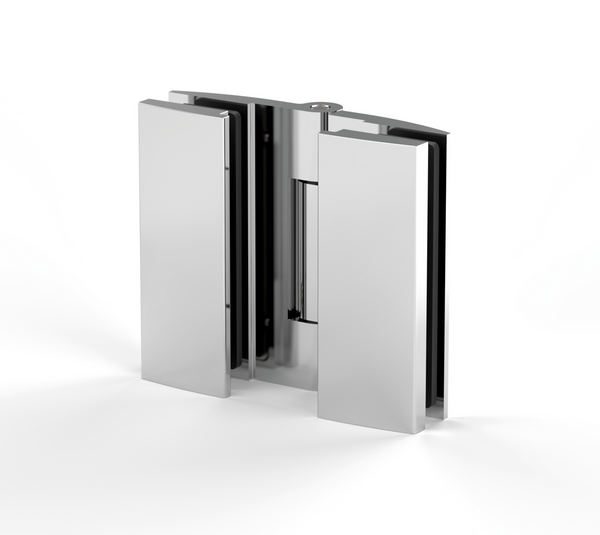

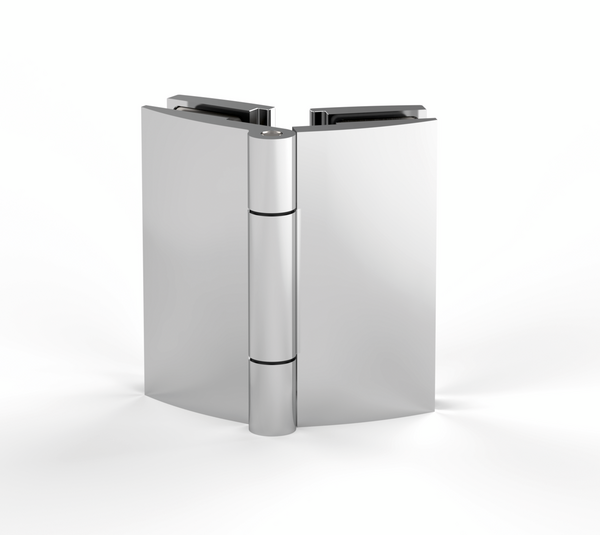

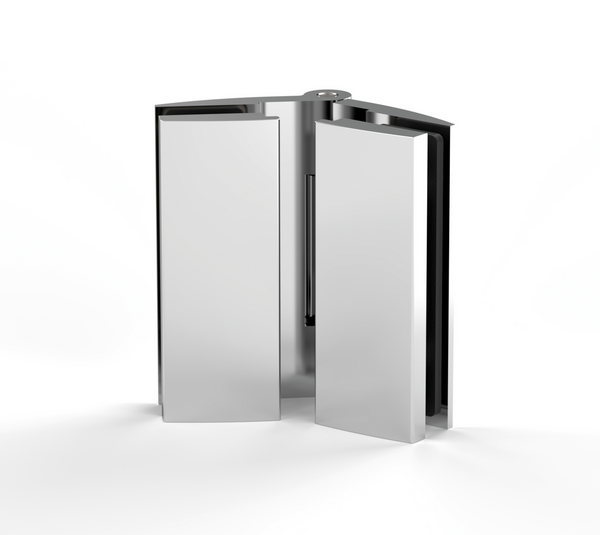

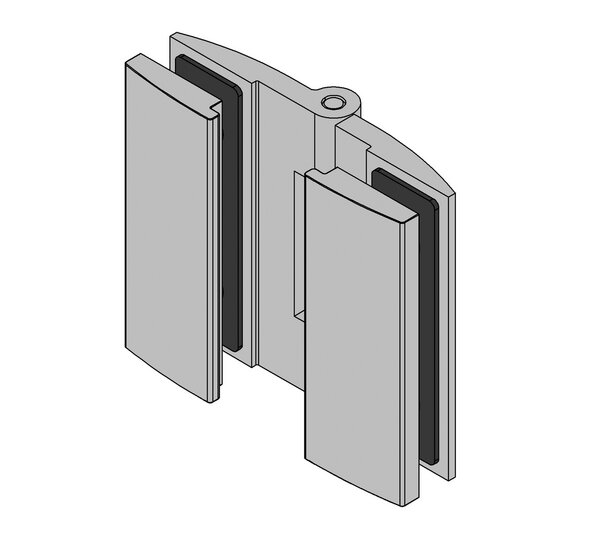

Avila shower door hinge, glass-glass 135-180°

Product number: BO5215475

Description

The Avila shower door hinge has a load capacity of 45 kg. Doors up to a maximum size of 1.00 x 2.25 m can be installed. With 135-180° glass-to-glass mounting, the hinge is universally applicable and designed for both space-saving 135° corner showers and 180° folding glass walls.

Avila shower door hinges combine a unique convex design with useful technical details. The series impresses with its versatility and functionality, as well as its excellent value for money. No unsightly screw connections are visible on the surface. Installing Avila hinges only requires drilling holes in the glass, with no need to cut it. The sealing profile can be fed through the hinge.

Your Advantages

  • Only glass drilling required
  • Concealed screws
  • Shower door seals can be passed through the hinge
  • Cover caps with clip technology

Technical details

Concealed wall fixings
Yes
Degree of gloss
Shiny
Door type
Stop door
Flush
No
Glass processing required
Yes
Glass thickness TSG
6 - 10 mm
Hold position
Without
Inward / outward opening
Opening outwards
Material
Brass
Max. door height
2,250 mm
Max. door weight per pair
45 kg
Max. door width
1,000 mm
Mounting type
Glass-Glass
Opening angle
180°
Opening direction
DIN left and DIN right
Package contents
1 Piece
Retrieval zone
No
Rise/fall function
No
Screws on the belt concealed
Yes
Surface
Chrome-plated
Surface treatment
Polished
Show all Show less

Downloads

pdf
Instructions
BO5215475-Avila-hinge-glass-glass-135-180-instruction-manual.pdf

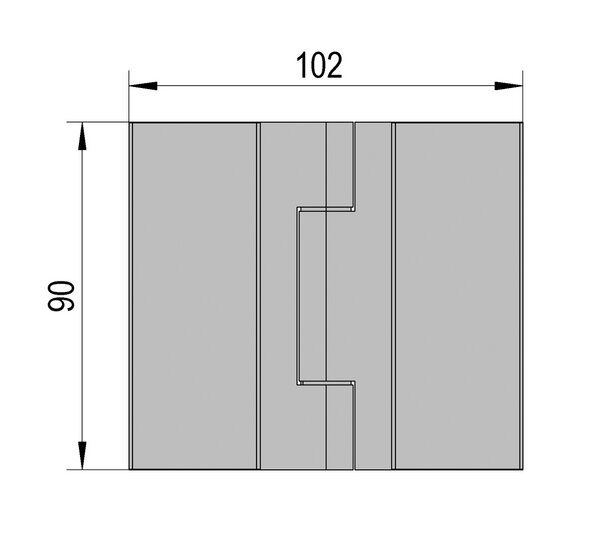

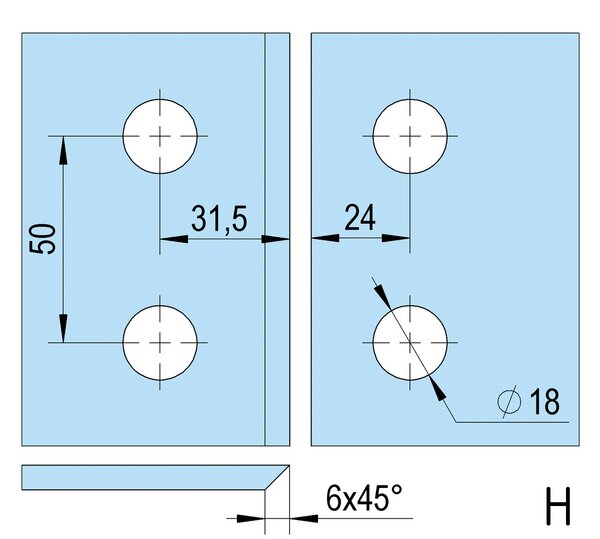

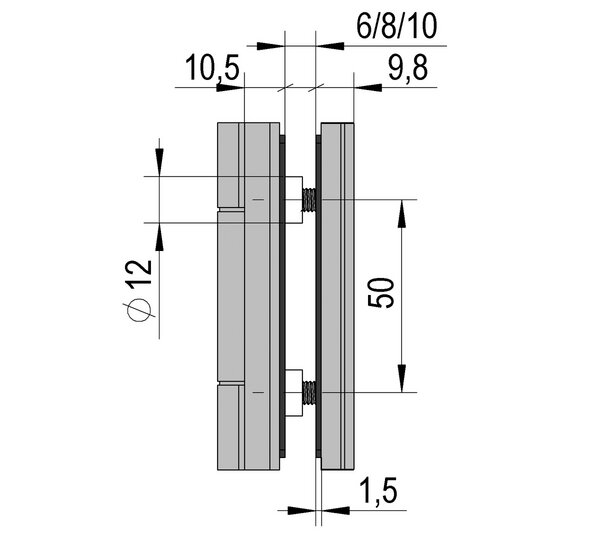

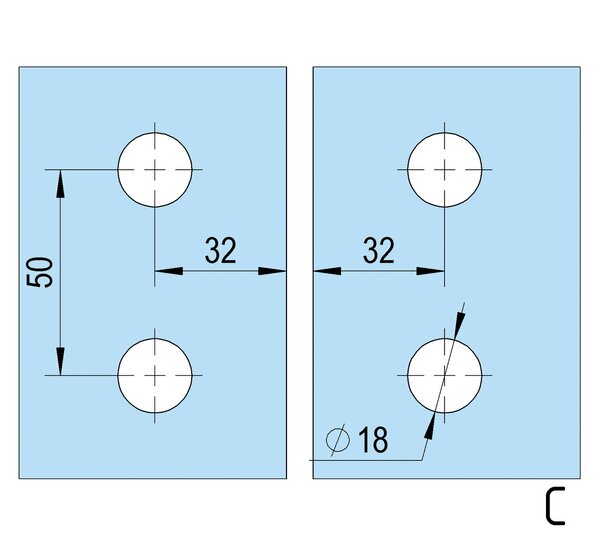

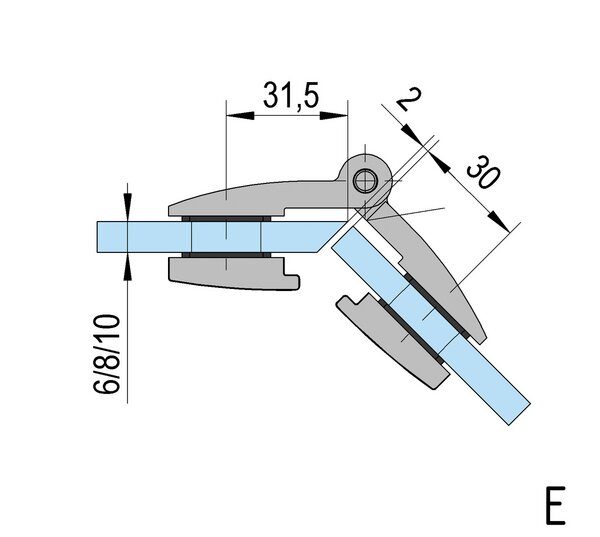

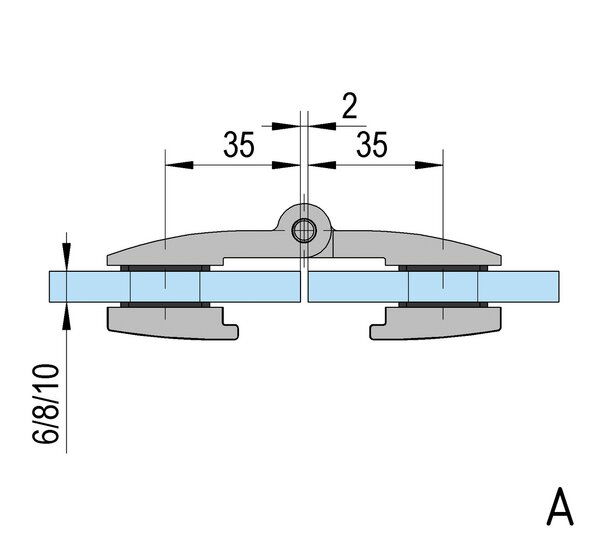

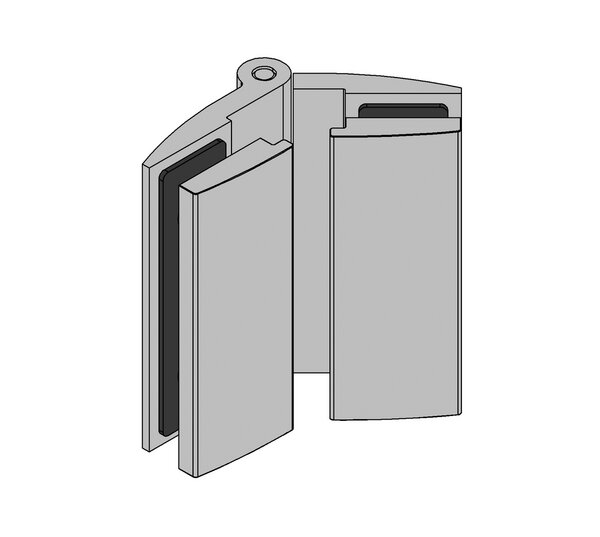

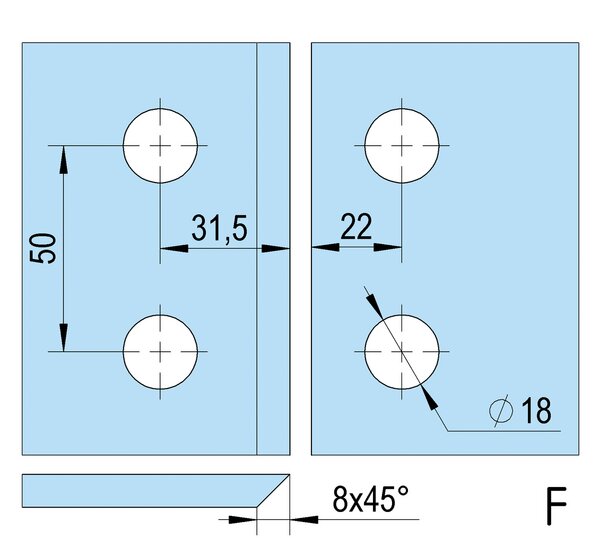

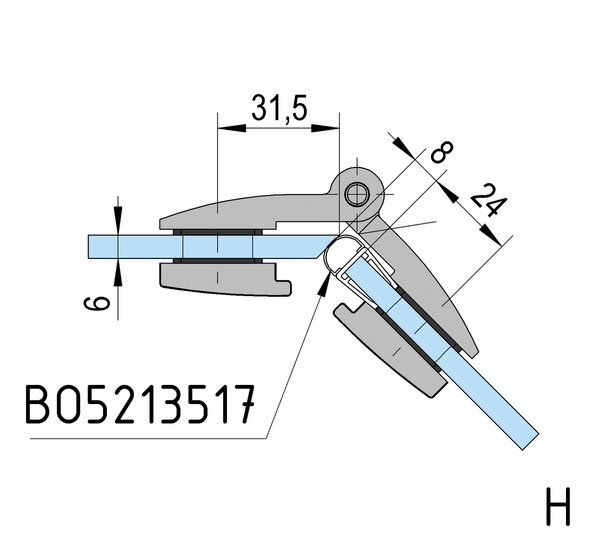

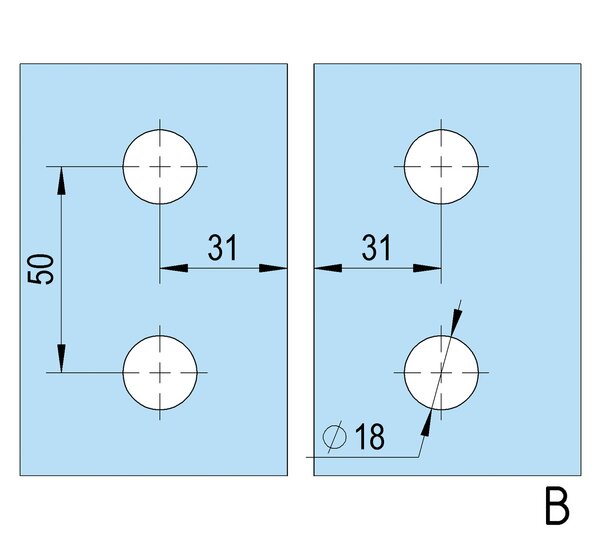

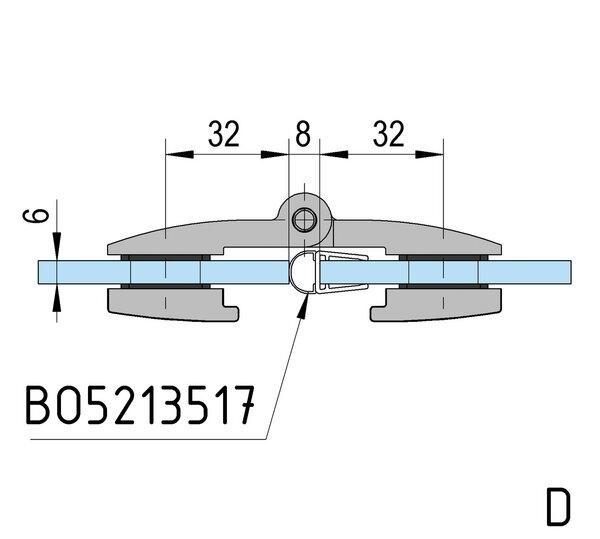

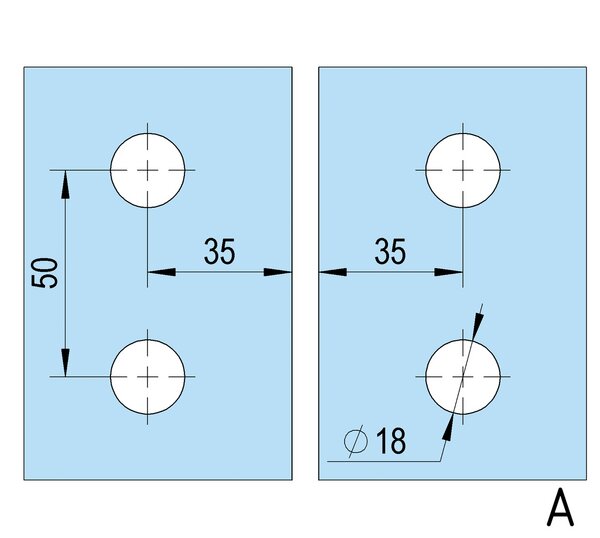

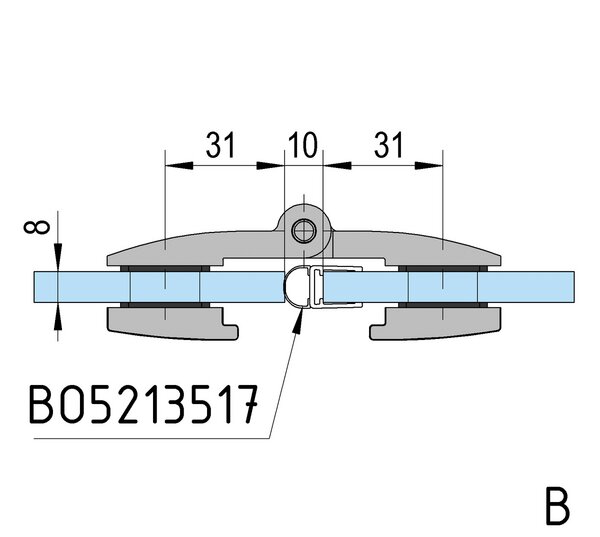

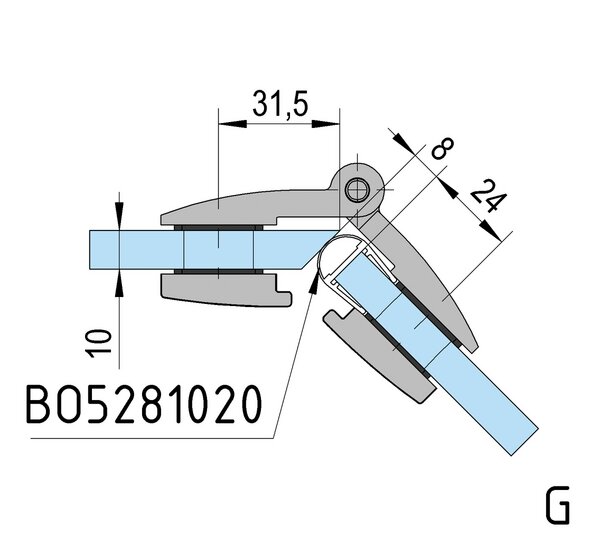

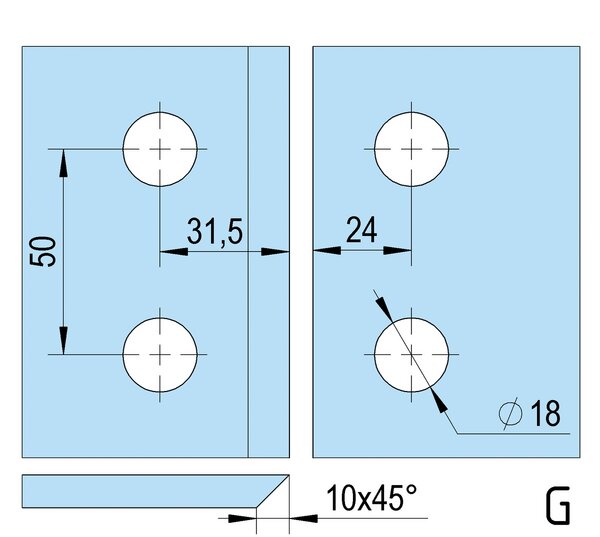

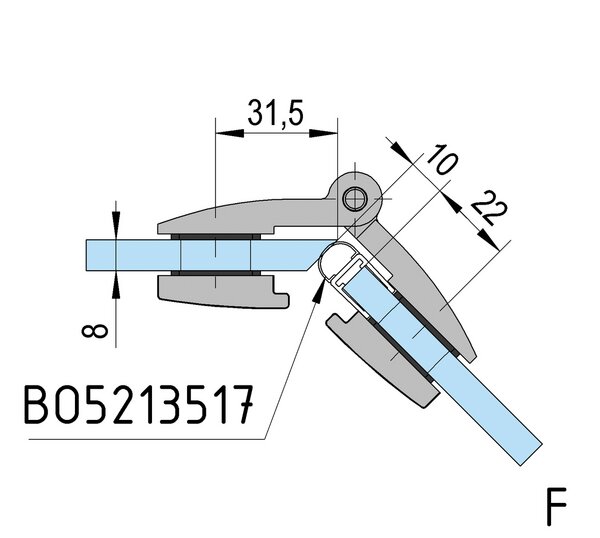

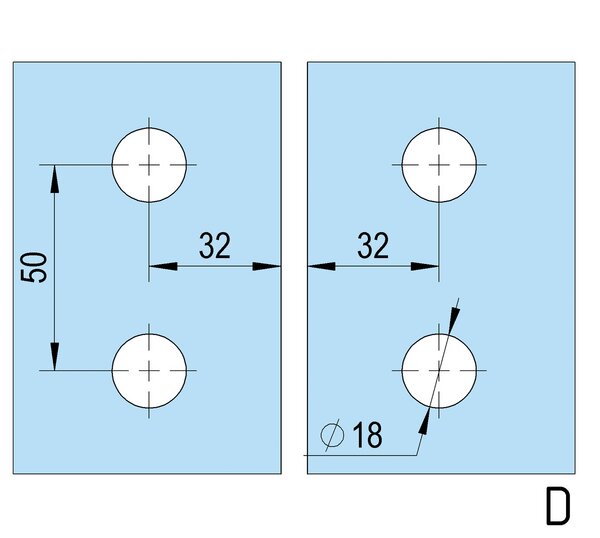

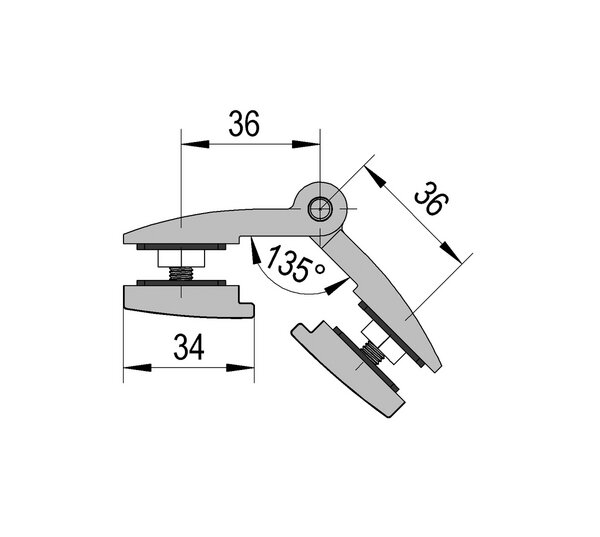

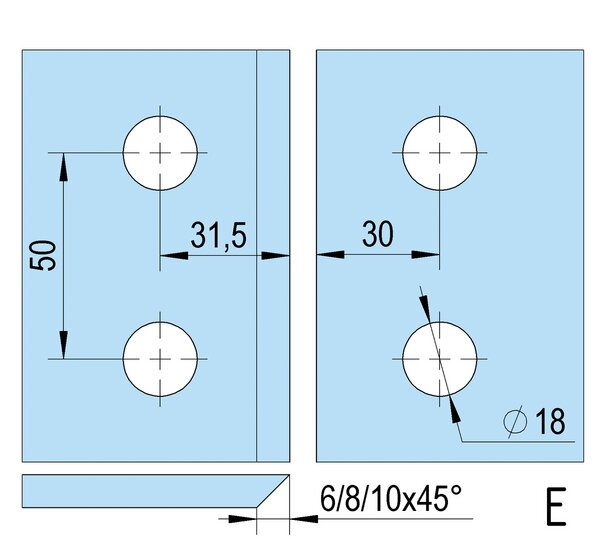

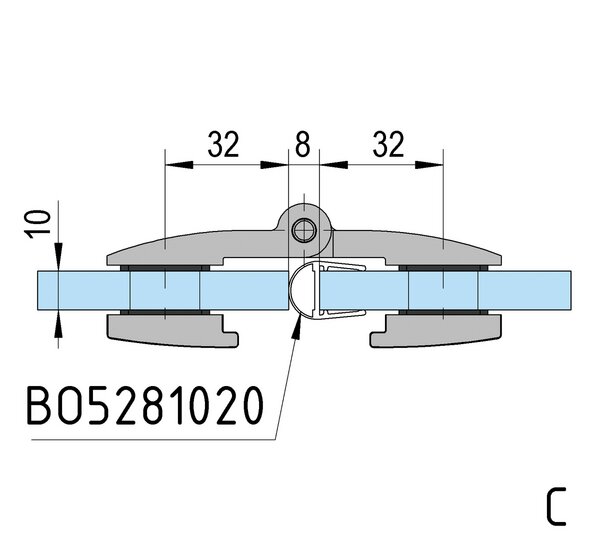

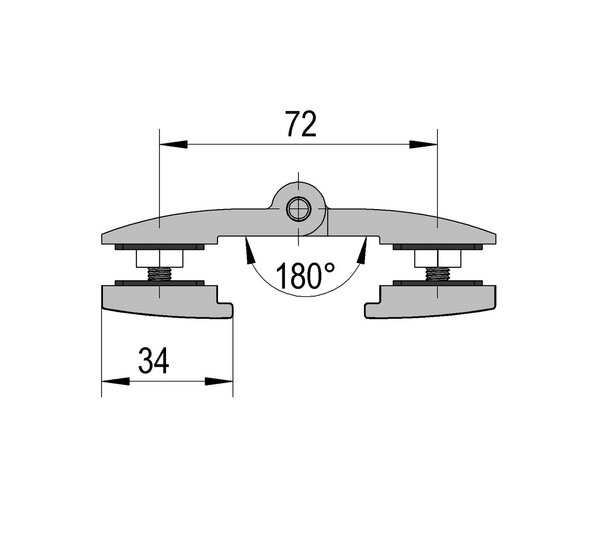

Drawings
